Combining Annotation and XML Configurations in your Spring 3 Applications

Who says you need to choose between XML and annotation based configurations. Why not use both! It's as easy as a little import annotation at the top of your config file.

How to Combine Spring XML and Annotation Configuration Files

comment on this article

Spring 3 provides the ability to use a Java based configuration file, as opposed to using those monolithic XML configuration files that everyone hates. However, it doesn't have to be a complete "annotations vs. xml" debate, as you can easily combine both approaches.

If you are using a Java @Configuration file, you can simultaneously load in an XML configuration file simply by adding an @ImportResource annotation. The following annotation loads in a Spring XML configuration file named meanbeans.xml into the annotation based Spring ApplicationContext object:

@Configuration
@ImportResource("classpath:meanbeans.xml")
class JConfig { }

So, if you've got a class named FooBean and a class named BarBean, and you have one bean configured in the XML file, and the other configured in the Java @Configuration file, you can pull them both into your application from a single beanFactory.

class FooBean { }
class BarBean { }

So, this would be the goal:

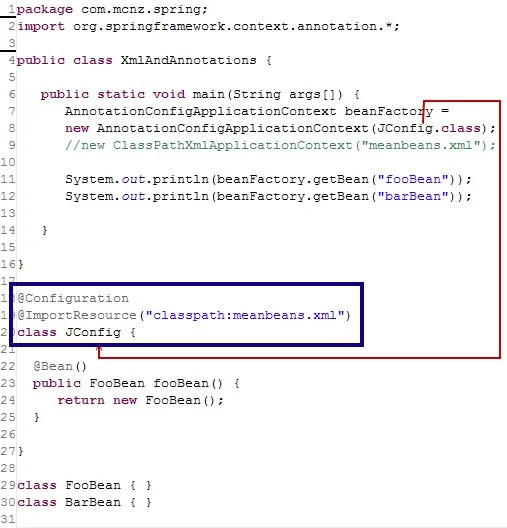

public class XmlAndAnnotations {

  public static void main(String args[]) {
    AnnotationConfigApplicationContext beanFactory =
    new AnnotationConfigApplicationContext(JConfig.class);
      //new ClassPathXmlApplicationContext("meanbeans.xml");

    System.out.println(beanFactory.getBean("fooBean"));
    System.out.println(beanFactory.getBean("barBean"));
  }
}

Notice how both the fooBean and barBean are pulled from a common beanFactory, despite the two beans being configured in different configuration resources? Here's the full Java based configuration file, which only specifically describes the creation of the fooBean:

@Configuration
@ImportResource("classpath:meanbeans.xml")
class JConfig {
  @Bean()
  public FooBean fooBean() {return new FooBean();}
}

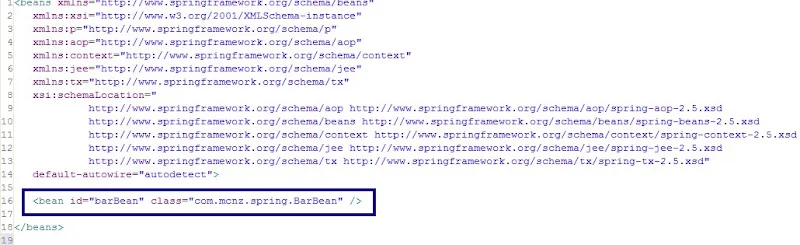

And here's the meanbeans.xml file, which describes the barBean:


<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:p="http://www.springframework.org/schema/p"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:jee="http://www.springframework.org/schema/jee"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-2.5.xsd
http://www.springframework.org/schema/jee http://www.springframework.org/schema/jee/spring-jee-2.5.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.5.xsd"
default-autowire="autodetect"
>
  <bean id="barBean" class="com.mcnz.spring.BarBean" />
</beans>

And that's it! When the main method of the XmlAndAnnotations class runs, both the fooBean and barBean will be loaded from two separate Spring configuration resources!
